GIVING SET PAED DIAL A RATE- SELECT

GIVING SET PAED DIAL A RATE- SELECT

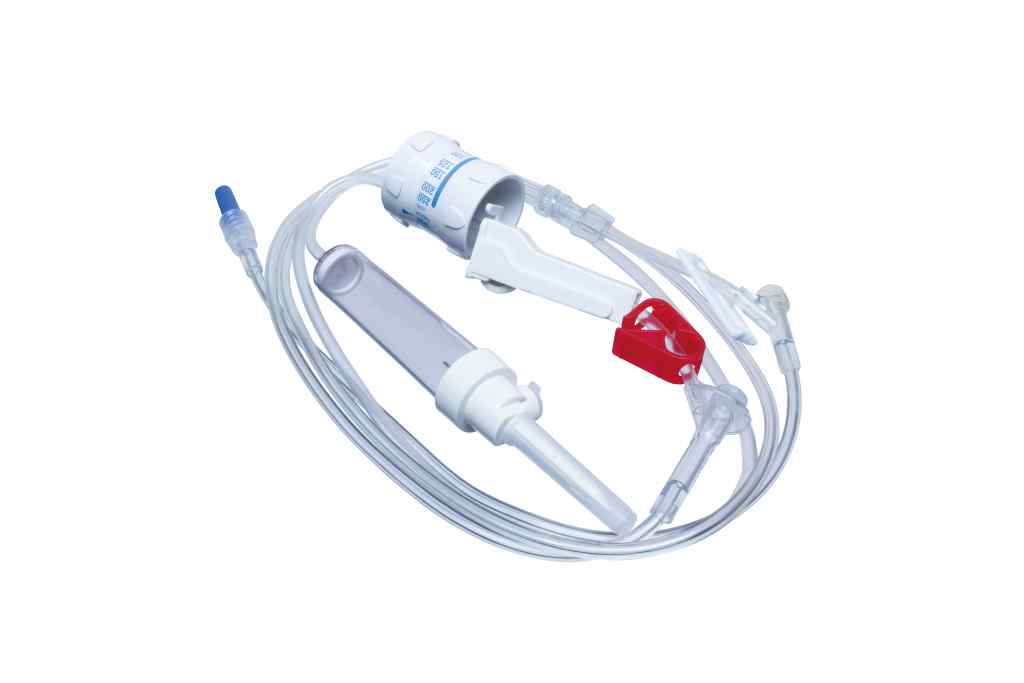

The Paediatric Dial-A-Rate giving set is fully pump compatible with standard infusion pumps and has kink proof tubing in the end extension. The precision flow regulator (5-250ml/hour range) provides greater acuuracy at lower flow rates.

  • 60 drops/ML
  • Comes with a precision flow regulator (5-250ml/hour range)
  • Twin y-injection sites, finger guard on proximal port
  • Precision roller valve
  • 1.7m length
  • C-clamp
  • Kink proof integral end section
Product Attributes

Order Codes

Code Description Size
892129 GIVING SET PAED DIAL A RATE- SELECT EA
Order Now

To order, you will be directed to the NVS Online portal.
Prefer to order a different way?

  • Free Next Day Delivery

  • Order Up To 7:30PM

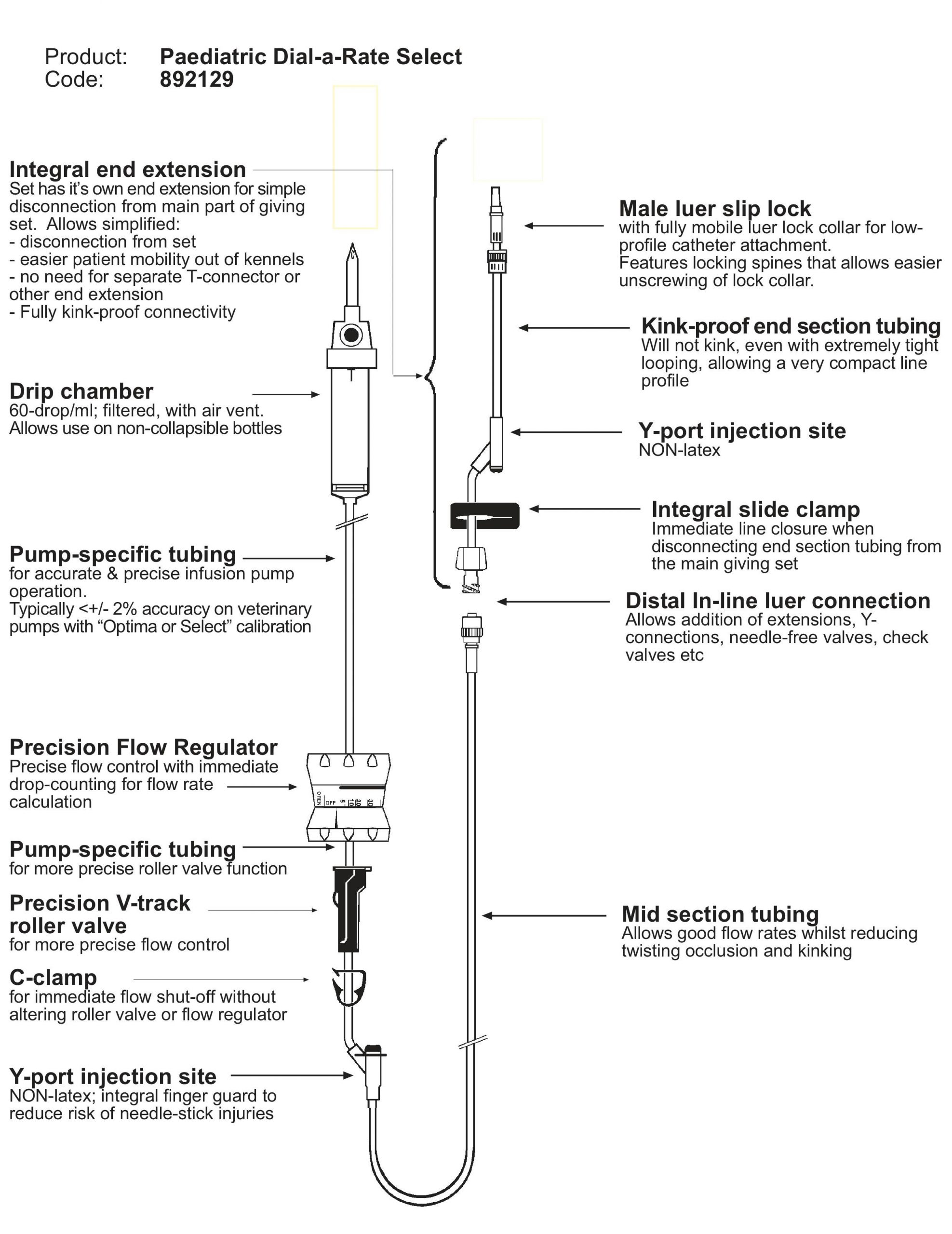

More information about GIVING SET PAED DIAL A RATE- SELECT

When using as a gravity fed infusion, using the precision flow regulator allows accurate flow control, 5 to 250ml/ht range. Provides immediate control of flow rate unlike the roller valve.

When using an infusion pump, the precision flow regulator needs to be in the fully open position.

Soft compressible 60drop/ml chamber which is filtered and has an air vent.

Pump compatible top tube section for accurate and precise infusion pump operation.

Distal: in-line luer connection, allowing disconnectionf of the end extension improving mobility.

Inetgral end extension with side clamp and fully mobile luer lock.
